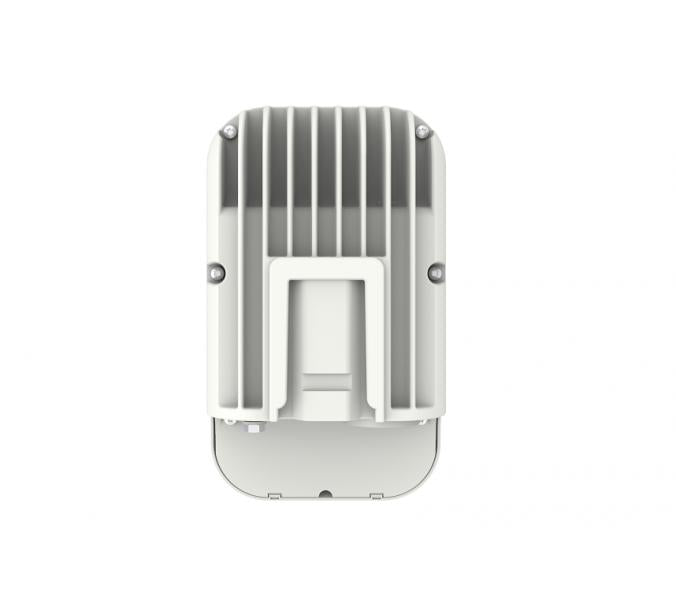

cnWave V1000 Client Node 60 GHz

Voor Cambium Networks gelden speciale projectprijzen. Neem contact op voor meer informatie.

V1000 is featured with wide-range, 80 degrees beamforming for easy installation. Powered by 802.3af PoE, V1000 supports up to 2 Gbps with 1 Gbps in the uplink direction and 1 Gbps in the downlink direction.

1. Supports 57 to 66 GHz
2. Up to 2 Gbps (1 Gbps UL and 1 Gbps DL)
3. Auto-beamforming, 80 degrees horizontal and 40 degrees vertical
4. TDMA channel access and TDD Network Synchronization
5. 802.11ay standard technology with Terragraph certification

Specifications

Frequency Range	57 to 66 GHz in a single SKU
Channel Width	2.16 GHz, 4.32 GHz
Channel Access	TDMA/TDD

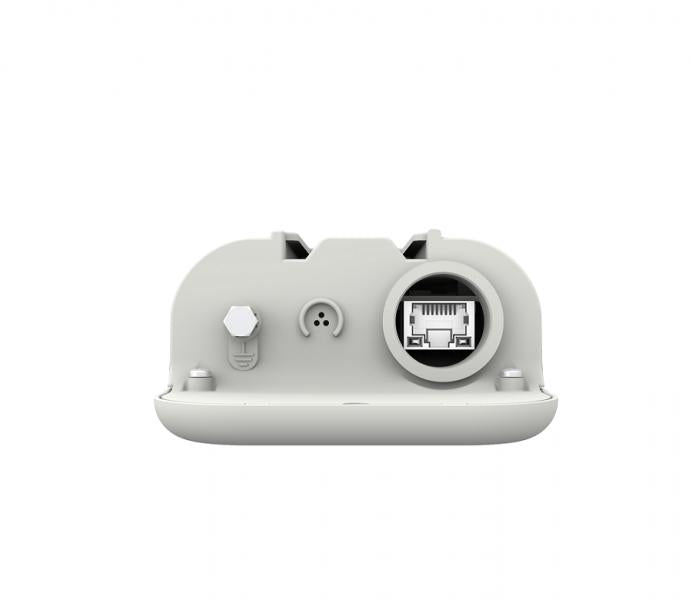

Ethernet Interface	1 x 100/1000 BaseT with PoE In
Protocol Supported	IPv4, IPv6
Network Management	cnMaestro, HTTP, HTTPS, SNMP v2c & v3
MTU	4,000 bytes
VLAN	802.1ad (QinQ), 802.1Q with 802.1p priority
QoS	4 Level QoS, DSCP and VLAN Tag
Encryption	128-bit AES
Firmware Security	Signed Firmware Images
Modulation & Coding Schemes	MCS-0 (BPSK) to MCS-12 (16-QAM)
Maximum EIRP	38 dBm
Gain	22.5 dBi
Type	Integrated
Beamforming Scan Range	+/- 40 degree azimuth, +/- 20 degree elevation
Beam Width	12 degree
Type	802.3af PoE
Power Consumption	10 W
Environmental	IP66/67
Temperature	-40 C to 60 C
Mean Time Between Failure	> 40 years
Weight	0.25 kg
Dimensions	140 mm x 85 mm x 40 mm
Wind Survival	200 km/h

Inhoud verpakking

V1000, Handleiding, Voeding (inclusief kabel), Polemount (inclusief strap/klem), wartel
