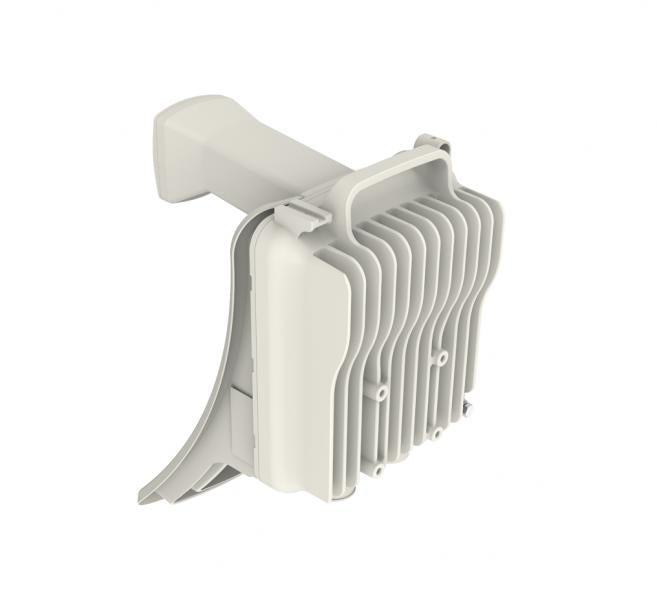

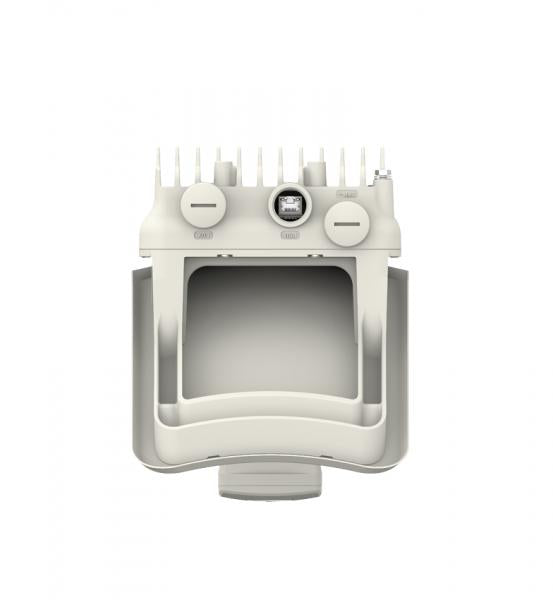

cnWave V3000 Client Node 60 GHz - 40.5 dBi antenne

60 GHz cnWave V3000 High-Gain Client Node

Cambium Networks' 60 GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure.

Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave solutions are highly efficient at handling high-density deployments in cities and suburban areas.

V3000 is featured with 40.5 dBi high-gain antenna with beamforming. The Client Node (CN) can be used as either a client in PMP configurations or an end-point in PTP configurations. Modulation & Coding Schemes MCS-0 (BPSK) to MCS-12 (16-QAM) Latency < 1 ms Maximum EIRP 54.5 dBm (with 40.5 dBi Antenna) Gain 40.5 dBi Type Integrated Beamforming Scan Range +/- 2 degrees azimuth, +/- 1 degrees elevation Beam Width 0.8 degrees

Powering & Physical

Type	Passive PoE (42-57V) without AUX PoE Out in use
Power Consumption	60 W with AUX PoE Out in use, 30 W without AUX PoE Out in use
Environmental	IP66/67
Temperature	-40 C to 60 C
Mean Time Between Failure	> 40 years
Weight	3.9kg without clamp
Dimensions	343 x 198 x 251 mm
Wind Survival	200 km/h
