Cambium Networks

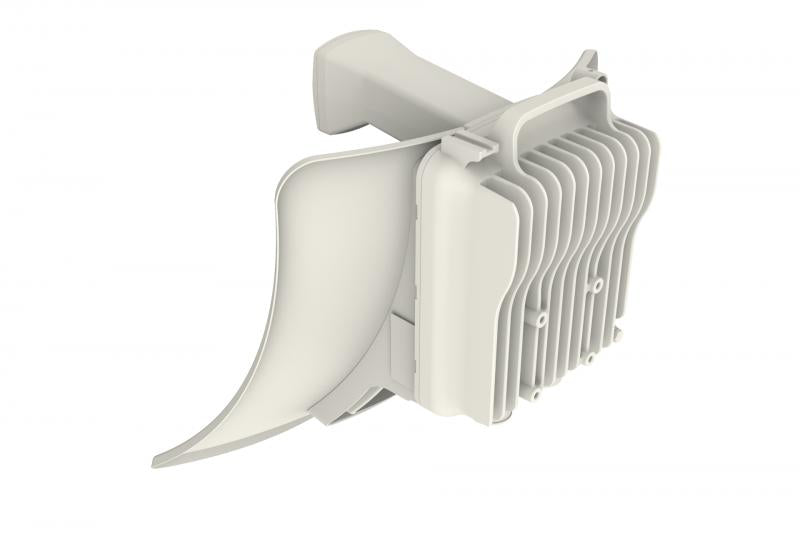

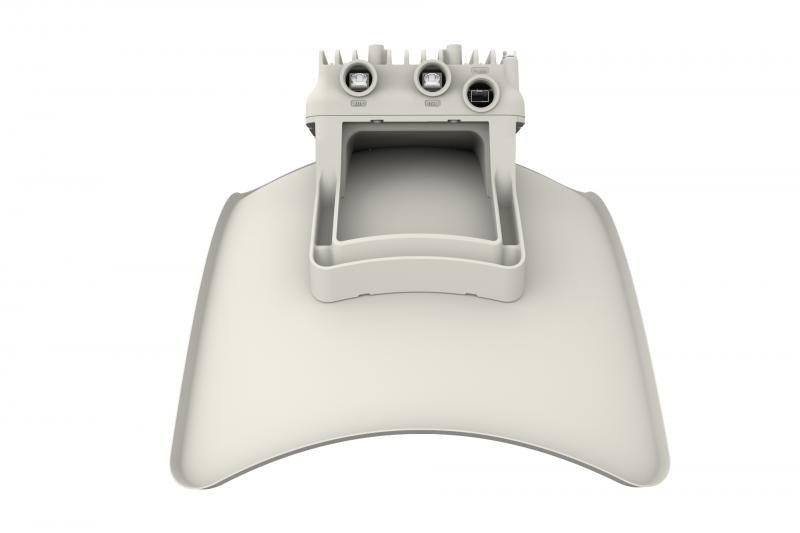

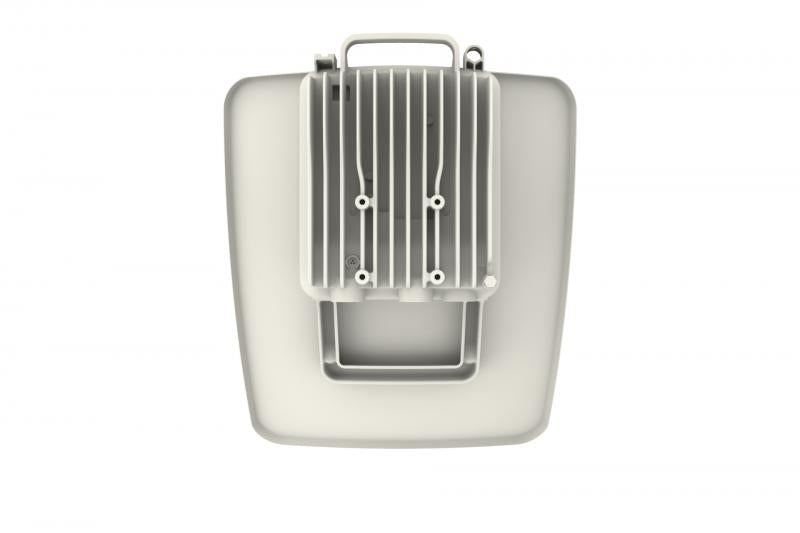

cnWave V3000 Client Node 60 GHz - radio
cnWave V3000 Client Node 60 GHz - radio
Normale prijs
€803,54 EUR
Normale prijs
Aanbiedingsprijs
€803,54 EUR
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Aantal
Kan beschikbaarheid voor afhalen niet laden
Voor Cambium Networks gelden speciale projectprijzen. Neem contact op voor meer informatie.
V3000 is featured with a 44.5 dBi high-gain antenna with beamforming. The client nodes can support up to 7.6 Gbps with channel bonding for both PMP and PTP configurations.
- Supports 57 to 66 GHz
- Up to 7.6 Gbps (3.8 Gbps UL and 3.8 Gbps DL) with channel bonding
- Easy installation with autobeamforming
- Low latency < 1 ms
- 802.11ay technology with Terragraph certification
Specifications
| Frequency Range | 57 to 66 GHz in a single SKU |
| Channel Width | 2.16 GHz, 4.32 GHz |
| Carrier Bonding | Up to 2 adjacent channels |
| Mode of Operation | PMP or Mesh, PTP |
| Channel Access | TDMA/TDD |
| Ethernet Interface | 1 x 100/1000/10G BaseT with PoE In 1 x 100/1000 BaseT with 802.3at PoE Out 1 x SFP+ |
| Protocol Supported | IPv4, IPv6 |
| Network Management | cnMaestro, HTTP, HTTPS, SNMP v2c & v3 |
| MTU | 4,000 bytes |
| VLAN | 802.1ad (QinQ), 802.1Q with 802.1p priority |
| QoS | 4 Level QoS, DSCP and VLAN Tag |
| Encryption | 128-bit AES (optional) |
| Encryption Encryption | Signed Firmware Images |
| Modulation & Coding Schemes | MCS-0 (BPSK) to MCS-12 (16-QAM) |
| Maximum EIRP | 60.5 dBm |
| Gain | 44.5 dBi |
| Type | Integrated |
| Beamforming Scan Range | +/- 2 degree azimuth, +/- 1 degree elevation |
| Beam Width | 0.8 degree |
| Type | Passive PoE (42-57V) without AUX PoE Out in use |
| Power Consumption | 55 W with AUX PoE Out in use, 30 W without AUX PoE Out in use |
| Environmental | IP66/67 |
| Temperature | -40 C to 60 C |
| Mean Time Between Failure | > 40 years |
| Weight | < 4 kg |
| Dimensions | 346 mm x 414 mm x 344 mm |
| Wind Survival | 200 km/h |
