Cambium Networks
cnWave V5000 Distribution Node 60 GHz
cnWave V5000 Distribution Node 60 GHz
Normale prijs
€1.451,01 EUR
Normale prijs
Aanbiedingsprijs
€1.451,01 EUR
Belastingen inbegrepen.
Verzendkosten worden berekend bij de checkout.
Aantal
Kan beschikbaarheid voor afhalen niet laden
Voor Cambium Networks gelden speciale projectprijzen. Neem contact op voor meer informatie.
om de V5000 aan een paal te verbinden dien je de C000000L137A, cnWave Universal Pole Mount Bracket for 1 inch - 3 inch diameter poles.ook aan te schaffen (zie toebehoren)
V5000 is featured with two sectors covering up to 280 degrees with beamforming. A single V5000 can connect up to 30 devices, which includes up to four distribution nodes. V5000 can be used for PTP, PMP and mesh configurations.
- Supports 57 to 66 GHz
- Dual-sector with 280 degrees coverage
- Up to 15.2 Gbps (7.6 Gbps UL and 7.6 Gbps DL) with channel bonding
- TDMA/TDD channel access and Network Synchronization
- 802.11ay technology with Terragraph certification
Specifications
| Frequency Range | 57 to 66 GHz in a single SKU |
| Channel Width | 2.16 GHz, 4.32 GHz |
| Carrier Bonding | Up to 2 adjacent channels |
| Mode of Operation | PMP or Mesh, PTP |
| Channel Access | TDMA/TDD |

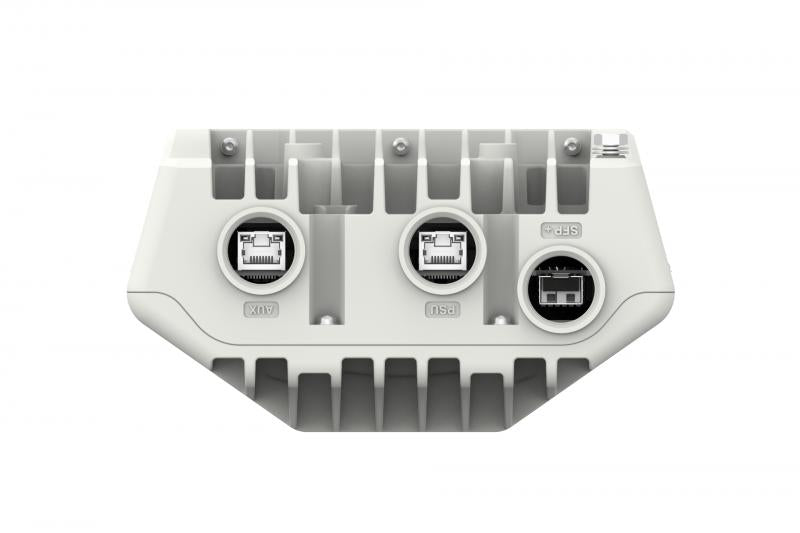

| Ethernet Interface | 1 x 100/1000/10G BaseT with PoE In, 1 x 100/1000 BaseT with 802.3at PoE Out, 1 x SFP+ |
| Protocol Supported | IPv4, IPv6 |
| Network Management | cnMaestro, HTTP, HTTPS, SNMP v2c & v3 |
| Maximum EIRP | 38 dBm |
| MTU | 4,000 bytes |
| Gain | 22.5 dBi |
| Type | Integrated |
| Beamforming Scan Range | +/- 140 degrees azimuth, +/- 20 degrees elevation |
| Beam Width | 12 degrees |
| Type | Passive PoE (42-57 V) |
| Power Consumption | 60 W with AUX PoE Out in use, 35 W without AUX PoE Out in use |
| Environmental | IP66/67 |
| Temperature | -40 C to 60 C |
| Mean Time Between Failure | > 40 years |
| Weight | < 4 kg |
| Dimensions | 280 mm x 185 mm x 102 mm |
| Wind Survival | 200 km/h |
