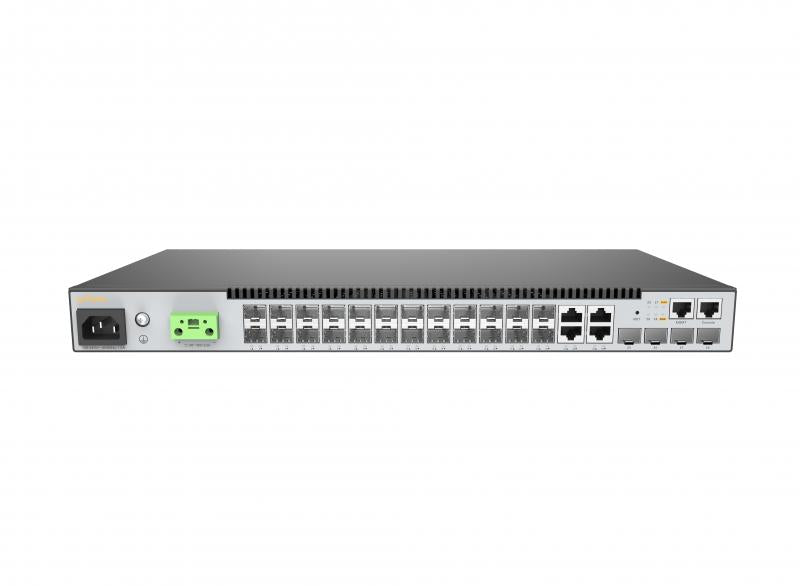

FusionSwitch Fiber - FNS-SFP-24 1

The IgniteNet FusionSwitch Fiber is a Gigabit Ethernet access switch with four 10G uplink ports. The switch is ideal for Internet Service Providers (ISPs) and Multple System Operators (MSOs) for providing triple-play services to home users with up to a Gigabit of bandwidth. It is also an ideal Gigabit access switch for SMB, enterprise, and campus networks. The FusionSwitch Fiber is packed with features that bring high availability, comprehensive security, robust multcast control, and advance QoS to the network edge, while maintaining simple management.

The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multcast control in accordance with the growth of IPv6 deployment. ISPs can expand their services for home and business users by providing a more reliable and resilient network (ITU-T G.8032 ERPS), L2 VPNs, and advanced OAM (Operatons, Administraton, and Maintenance) functons to ensure service-level agreements.

Specifications

Port
- 100/1000 SFP Ports: 20
- 100M RJ-45 Port (outband management): 1
- 10/100/1000 Combo Ports: 4
- SFP+ 10 Gigabit Uplink Ports: 4
- RJ-45 Console Port: 1

Performance
- Switching Capacity: 128 Gbps
- Forwarding Rate: 95 Mpps
- Flash Memory: 256 MB
- DRAM: 512 MB

- Rack Space: 19"
- Dimension (W x D x H) mm: 440 x 220 x 44
- Weight: 2.82 kg (6.22 lb)
- Max System Power Consumption (Watts) 37.3 W

Package contents

FNS-SFP-24, Mounting Kit (4 brackets, 10 screws), Foot Pads (4), Grounding Wire, Power Cord, Quick Start Guide
