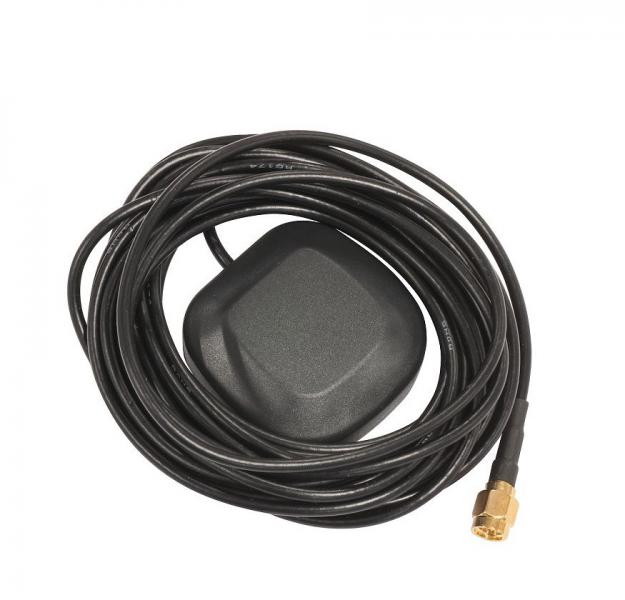

GPS antenna with SMA connector

ACGPSA is standalone active GPS antenna, that works in 1575.4 MHz spectrum. Antenna size is 46.5 mm x 26.5 mm x 12.5 mm with IP67 rating and includes internal magnet and double sided tape, so it can easily be attached to various surfaces. It has a long 5m cable with an SMA connector, to be connected to LtAP mini via the ACSMAUFL pigtail (available for ordering separately).

Specifications ACGPSA

Center frequency: 1575.42 Mhz
Gain: 26 dB
Water resistance: 100% waterproof (IP67)
Connector: SMA
Cable: 5 m RG-174/U (standard)
Standard mounting: Magnetic base
DC voltages: 3 V +-0.3 V
DC current: 8 mA max
Dimensions: 46.5 x 46.5 x 12.5 mm
Weight: 35 g (without cable), 120 g (with cable and connector)
Operating temperature: -40 C to +85 C tested
