hAP ac2 - RBD52G-5HacD2HnD-TC

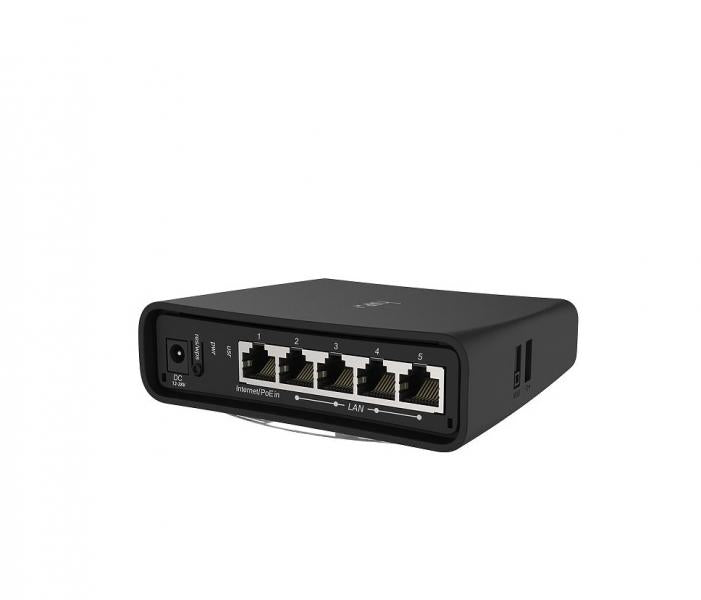

The hAP ac2 is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4 GHz and 5 GHz frequencies at the same time. Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, and USB can be used for external storage or 4G/LTE modem.

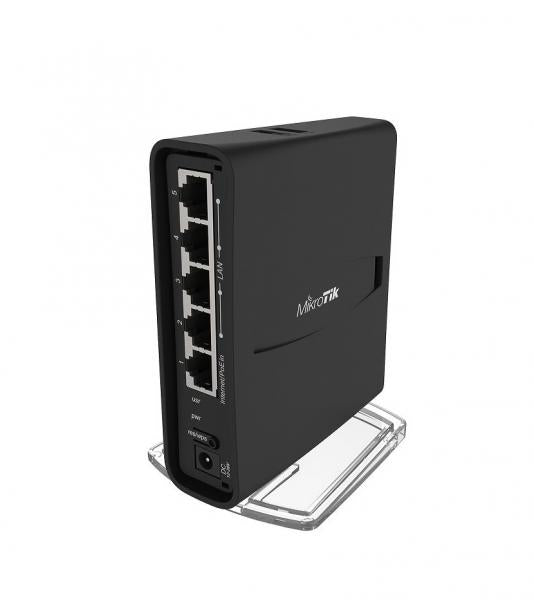

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.

Specifications RBD52G-5HacD2HnD-TC

Architecture: ARM 32bit
CPU: IPQ-4018
CPU core count: 4
CPU nominal frequency: 716 MHz
Dimensions: 34 x 119 x 98mm
License level: 4
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -40 C to 50 C

PoE in: Passive PoE
PoE in input Voltage: 18-28 V
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-30 V
Max power consumption: 21 W
Max power consumption without attachments: 16 W
AC speed: AC1200
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 2.5
Wireless 2.4 GHz chip model: IPQ-4018
Wireless 2.4 GHz generation: Wi-Fi 4
Wireless 5 GHz Max data rate: 867 Mbit/s
Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11a/n/ac
Antenna gain dBi for 5 GHz: 2.5
Wireless 5 GHz chip model: IPQ-4018
Wireless 5 GHz generation: Wi-Fi 5
10/100/1000 Ethernet ports: 5

Package Contents

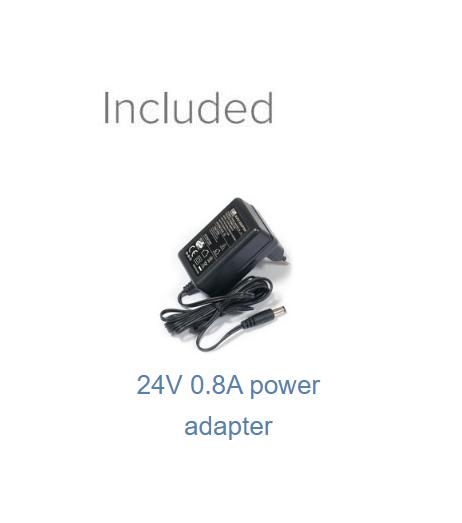

RBD52G-5HacD2HnD-TC, 24V 0,8 power adapter.
