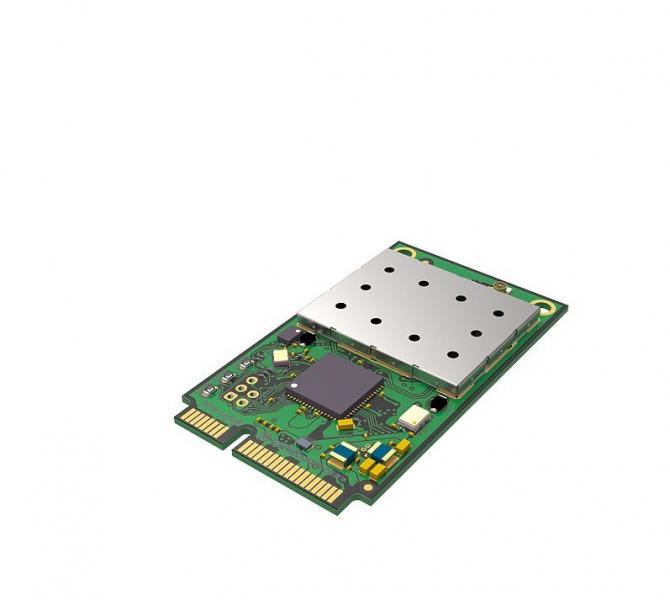

LoRa mini PCI-e card

MikroTik is bringing you new, powerful LoRa products for the fraction of the cost you would expect. R11e-LoRa8 is a new LoRaWAN concentrator Gateway card in mini PCIe form factor based on Semtech SX1301 chipset. It enables LoRaWAN connectivity for any MikroTik product that has mPCIe slot with connected USB lines.

With the support of 8 different channels, Listen Before Talk (LBT) and spectral scan features this product will astound you with its enticing price point. Operates in 863-870 MHz frequency (used in European Union, Russia, India etc.)

Specifications R11e-LoRa8

Interface: Mini-PCIe
Supported class: A and C
Frequency: 863-870 MHz (EU863-870, RU864-870, IN865-867)
RF Output power: 863-870 MHz 20 dBm
Receive max sensitivity: -137 dB SF12
Range: Up to 15 km in rural environment and up to 2 km in urban environment when using MikroTik LoRa 6.5 dBi antenna kit
Operating ambient temperature: -40 C to +70C
Max power consumption: 2 W

Package Contents

R11e-LoRa8
