mANT 15s - MTAS-5G-15D120

The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.

The mANT is a dual-polarization 15dBi 120 degree beamwidth antenna with two RP-SMA connectors. It is compatible with the SXT type mount, so you can use it with our durable and adjustable QuickMount systems. It comes with quickMOUNT PRO.

Specifications mANT 15s

Beamwidt: 120 deg (azimuth) 10 deg (elevation)

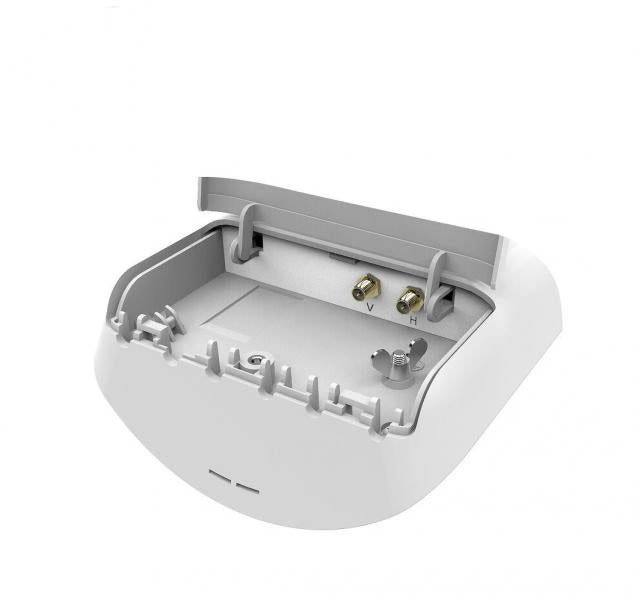

Connector: two RP-SMA
Cross Polarization: >30 dB
Diameter x Depth: 140 x 348 x 82 mm
Frequency Range: 5.17 - 5.825 GHz
Front-to-Back Ratio: >30 dB
Polarization: Vertical and horizontal
Port to Port Isolation: >40 dB min
VSWR: 1.43 typ, 1.8 max
Weight: 734 g

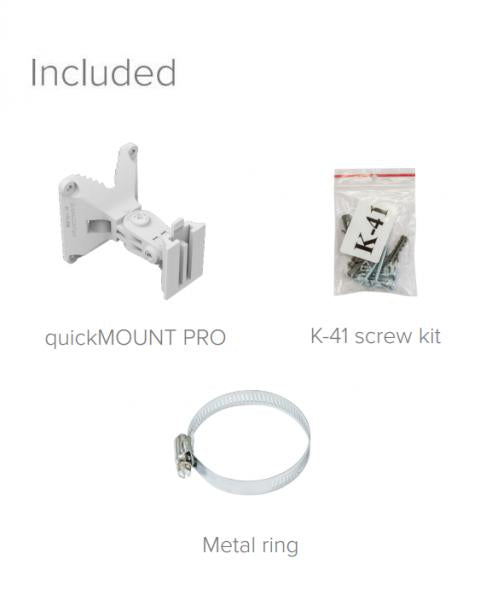

Package Contents

mant 15s, quickMOUNT PRO, K-41 screw kit, Metal ring.
