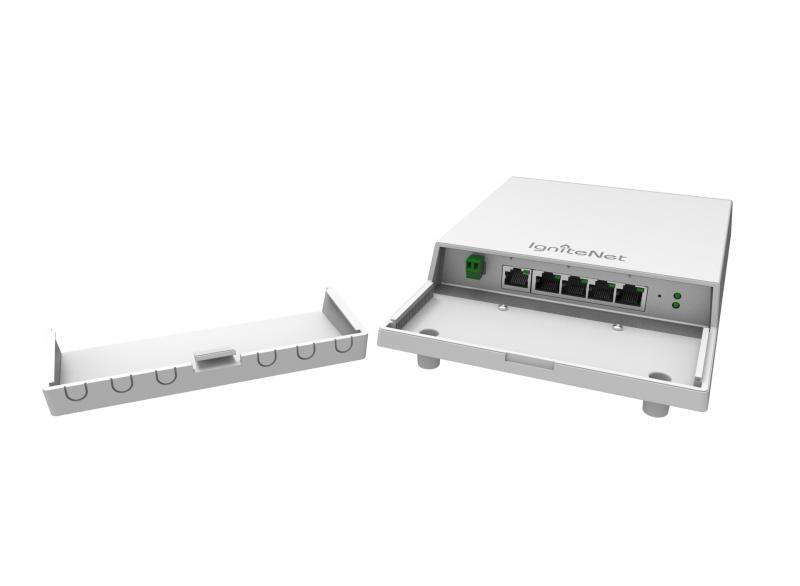

MeshLinq - Cloud-Enabled Outdoor Switch

IgniteNet's MeshLinq is the first of its kind: a cloud-managed, Trill-enabled, managed switch with power over ethernet output purpose built for flexible, redundant, futureproof network deployments. The MeshLinq brings proven, high-end datacenter technology to ISP worldwide by bringing the Trill mesh protocol at an affordable price-point. The sleek design of the MeshLinq allows it to be placed inconspicuously indoors or outdoors, bringing simplified, easy to install network management to any location. When paired with the MetroLinq platform, blazingly fast, secure, and robust networks are a breeze to deploy

Specifications

- 4x1000Mbps + 1x2500Mbps Ethernet, PoE + DC Power - 1x 2.5Gbps Ethernet Port (PoE IN)
- 4x Gigabit Ethernet Port (PoE OUT)
- Dual flash image support
- DC Input Screw Terminal

- LEDs: Power, Ethernet
- Dimensions: 240x150x49 mm
- Power: 24-56V DC, 24-48V PoE, 10W, PoE Out (1A per port)

Package contents

MeshLinq, Bracket Kit, POE Power Supply
