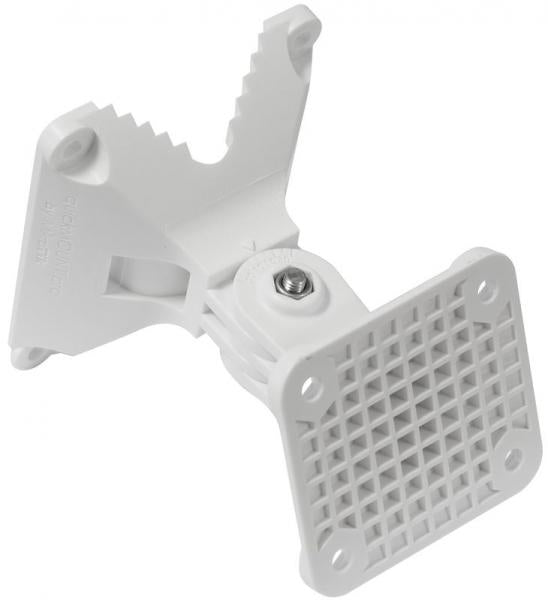

quickMOUNT PRO LHG

The quickMOUNT pro LHG is a advanced wall or pole mount adapter for our new LHG antennas. The quickMOUNT pro gives possibility to turn antenna within 140 degrees both in horizontal and vertical plane. With the quickMOUNT pro it is possible to perfectly set antenna alignment using integrated graduated scale.

Specifications QMP-LHG

Dimensions: 95x88x112mm
Tube diameter: 35 mm
Max tube diameter to which mount can be attached: 65 mm
Maximum antenna weight: 1.5 kg
Maximum wind load: 100 N
Turn angle for MikroTik products: 140 degrees
Compatible devices: LHG 5
Material: anvilNITE

Package Contents

6x30mm wall anchor (4), Self tapping screw (4), M6x20 buton head screw (4), M6 locking nut (4), 50-70mm hose clamp
