UniFi AC M Dual-Band Antenna UMA-D for UAP-AC-M

The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping.

Antenna Features

Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.

Weather-Resistant Enclosure

Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.

Versatile Mounting

The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.

Compatibility

The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.

Specifications

Dimensions: 201.3 x 128.0 x 32.5 mm (7.93 x 5.04 x 1.28")
Weight:
- (with Mount): 480 g (16.93 oz)
- (without Mount): 400 g (14.11 oz)
Enclosure: Outdoor UV Stabilized Plastic
RF Connections: (2) RP-SMA
Supported Frequency Range: 2.4 - 2.5 GHz, 5.1 - 5.9 GHz
HPOL Beamwidth:
- 2.4 GHz: 90 degrees
- 5 GHz: 45 degrees
VPOL Beamwidth:
- 2.4 GHz: 90 degrees
- 5 GHz: 45 degrees
Elevation Beamwidth:
- 90 degrees
- 45 degrees
Maximum VSWR: 2.5:1
Polarization: Dual-Linear
Cross-Pol Isolation:
- 2.4 GHz: 25 dB
- 5 GHz: 30 dB
Antenna Gain:
- 2.4 GHz: 10 dBi
- 5 GHz: 15 dBi
Mounting: Wall/Pole (Kits Included)

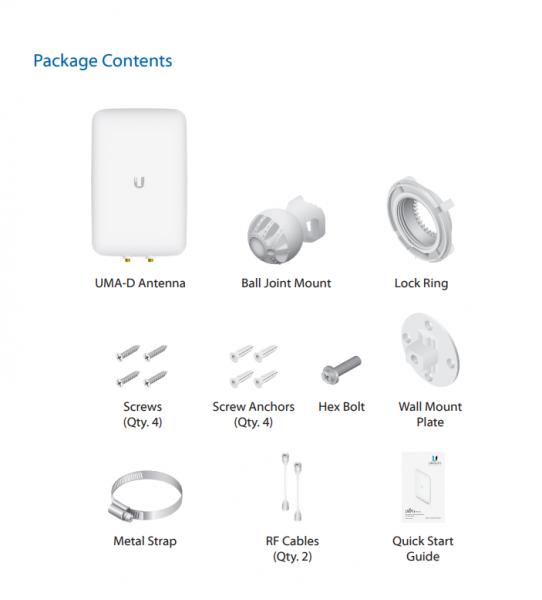

Package Contents

UMA-D Antenna, Ball Join Mount, Lock Ringa, Screws (4), Screw Anchors (4), Hex Bolt, Wall Mount Plate, Metal Strap, RF Cables (2), Quick Start Guide.
