wAP R - RBwAPR-2nD with miniPCI slot

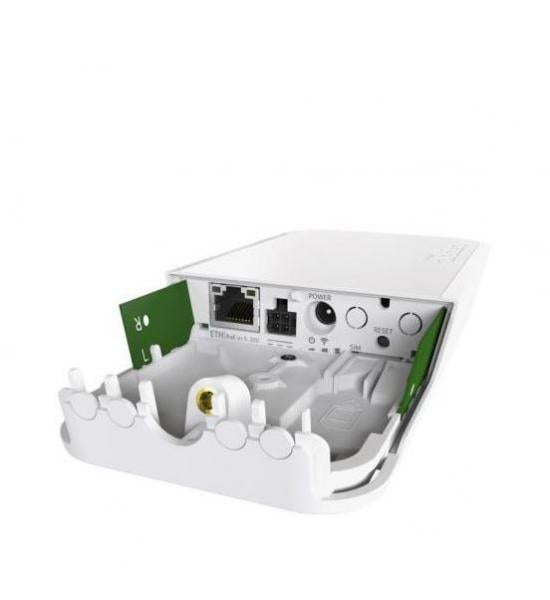

The wAP R is a small weatherproof 2.4Ghz wireless access point with a miniPCI-e slot (so you can use your own LTE card) and LTE antennas. Unit comes with one 10/100 Ethernet LAN port for your wired devices.

The weatherproof device can be mounted outside your house, in the vehicle, on your porch or anywhere else where you need wireless access from your phone or computer. It also includes a desktop stand so you can put it inside the building near a window. Unit has the several powering options - 9-30V PoE-in by Ethernet port, DC jack and automotive connector, very handy in mobile devices like car, bus or train.

Specifications wAP R

Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz
Dimensions: 185x85x30 mm
License level: 4
Operating System: RouterOS
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -40 C to 60 C

PoE in: Passive PoE
PoE in input Voltage: 9-30 V
Number of DC inputs: 3 (Automotive, DC jack, PoE-IN)
DC jack input Voltage: 9-30 V
Automotive input Voltage: 9-30 V
Max power consumption: 6 W
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 2
Wireless 2.4 GHz chip model: QCA9531
Wireless 2.4 GHz generation: Wi-Fi 4
10/100 Ethernet ports: 1

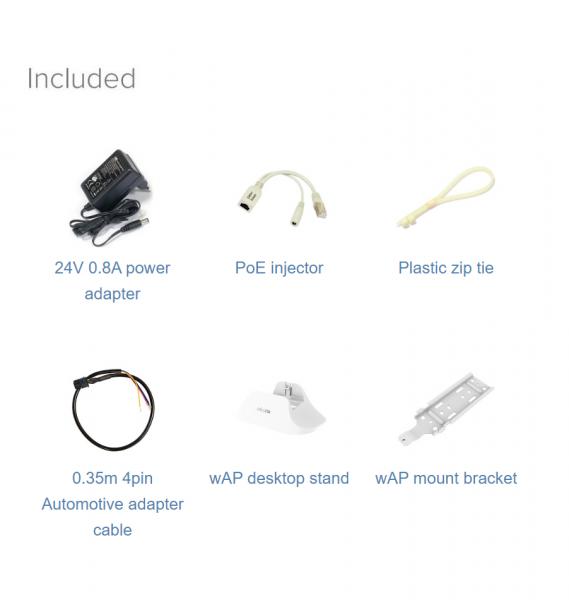

Package Contents

RBwAPR-2nD, 24V 0.8A power adapter, PoE injector, Plastic zip tie, 0.35m 4pin Automotive adapter cable, wAP desktop stand, wAP mount bracket.
